120V LED STRIP

120 Volt SMD 5050 LED Strip

SMD 5050 72W Flexible LED Strip Light uses high powered tri-chip LEDs. It is a flexible, no heat generating, low power consumption, high brightness lighting product. Its brilliant color effects make the LED Flexi-Strip ideal for a wide range of applications, such as architectural decorative lighting, kitchen cabinet lighting, guidance lighting, signage back lighting, counter lighting, home decoration, holiday decoration, etc.

Wide Loyal 120V LED Strip Light
120v Strip Light CASINO
120v Strip Light BLUE-Patio
LD5165 Pro Spec Sheet
LD5135 SOHO Spec Sheet
Item # Color
Specification
LD-5135WA Warm White
LD-5135WW White
LD-5135WR Red
LD-5135WY Yellow
LD-5135WB Blue
LD-5135WG Green
LD-5135WD Day Light
LD-6135WX RGB 4-Wire


LED Type SMD 5050
Ribbon Width Thickness 14 mm x 8 mm
Lumen(lm/m) 840 lm
IP Rating IP 65
Length 50 M
Cutting Unit 0.5 M
Voltage 120 Volt AC
Power Consumption 14.4W/per meter
Indoor / Outdoor
Transparent PVC Tube

120Volt-LED-tape02

 60 LEDs /M

2-Wire
60 LEDs/M 4-Wire RGB





Item # Color
Specification
LD-5165WA Warm White
LD-5165WW White
LD-5165WR Red
LD-5165WY Yellow
LD-5165WB Blue
LD-5165WG Green
LD-5165WD Day Light
LD-6165WX RGB 4-Wire


LED Type SMD 5050
Ribbon Width Thickness 14 mm x 8 mm
Lumen(lm/m) 1698 lm
IP Rating IP 65
Length 50 M
Cutting Unit 0.5 M
Voltage 120 Volt AC
Power Consumption 14.4W/per meter
Indoor / Outdoor
Transparent PVC Tube

120Volt-LED-tape02

 60 LEDs /M

2-Wire
60 LEDs/M 4-Wire RGB

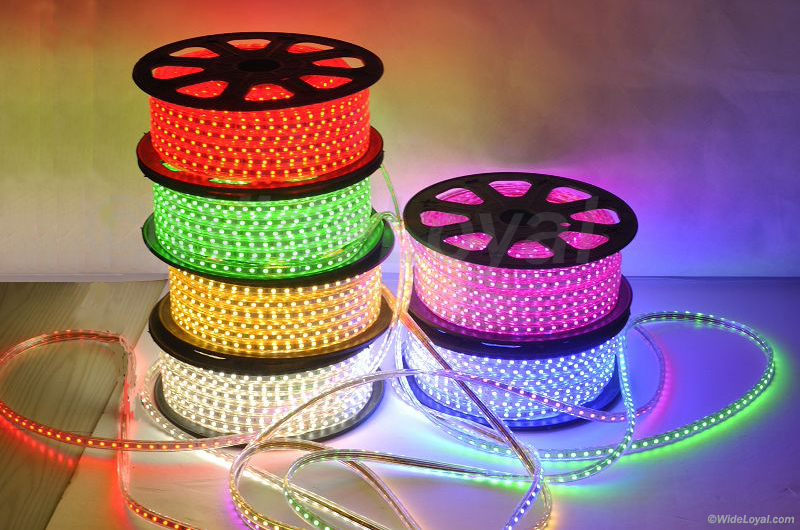

LED-120Volt-strip-Light-multi-color

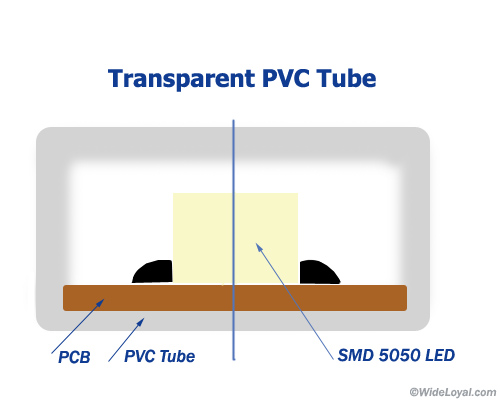

120v-striplight-pvc-tube

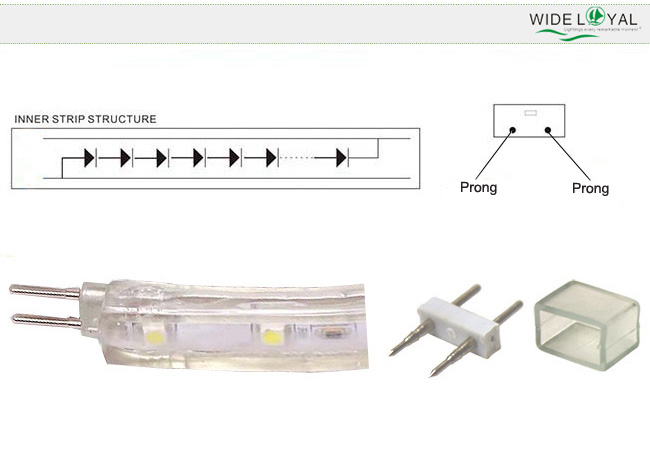

120Volt-LED-Strip-spec

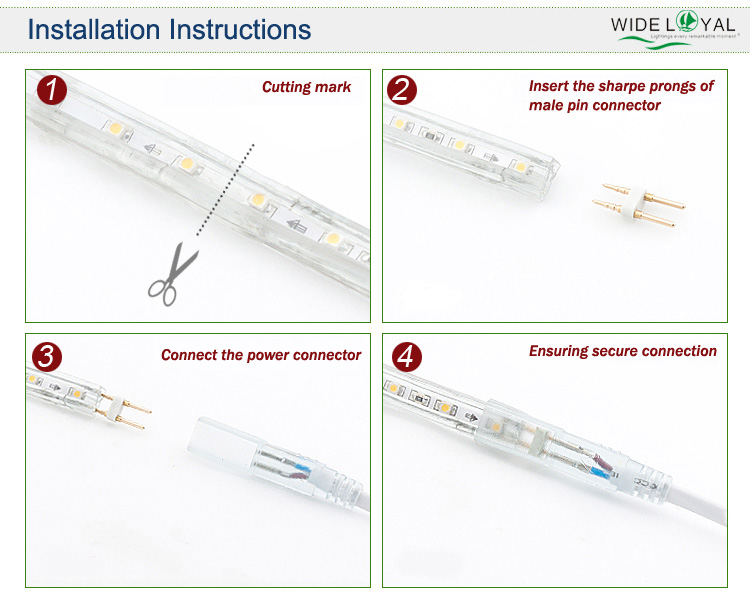

SMD5050-120v-Line-strip-instruction

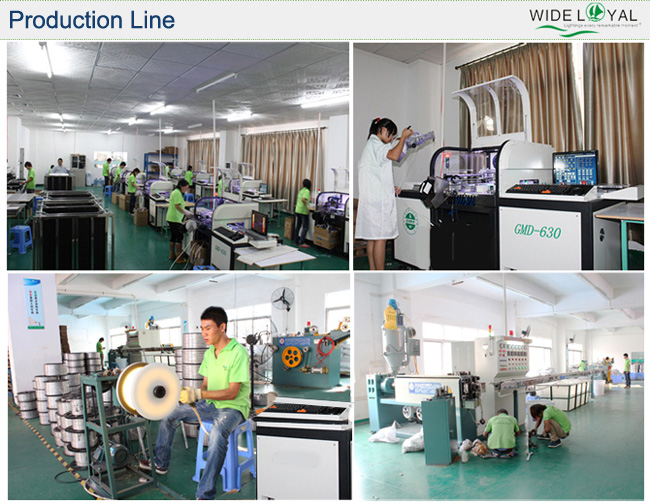

SMD5050-120V-production-line



LD-5165 Accessories:

Photo Name Product Code Function
LD561 Power Connector
2 prongs for 2 Wires		 LD5601 For connecting LED Strip Light to the power source, usually the maximum length of a run of LED Strip is 25 meters.

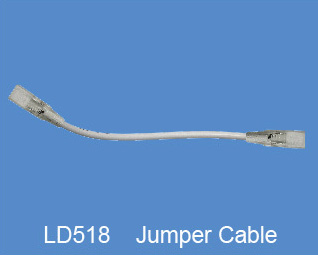

LD518 Jumper Cable
2 prongs 6 ft		 LD5618



 For connecting LED Strip Light SMD5050 120 volt 2 Wires line Connector .

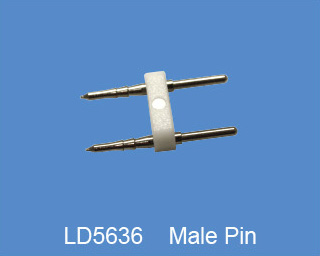

LD5636 Male Pin Connector
2 prongs for 2 Wires		 LD5635 Connector between 2 pieces of LED Strip Light.
10 pcs /pkg

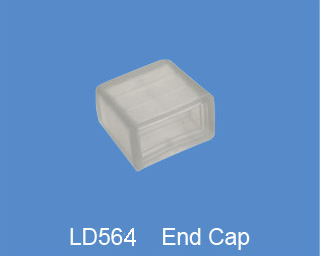

LD564 End Cap LD5604 End Cap for 120 volt SMD 5050 2 wires or 4 wires.

5 pcs /pkg
LD566 Mounting Clip LD5606 Mounting Clip for SMD 5050 120 volt 2 wires or 4 wires.
10 pcs clip + 20 pcs screw /pkg



Photo Name Product Code Function
Power Connector
2 prongs for 2 Wires
LD-5105		 LD501 For connecting LED Strip Light to the power source, usually the maximum length of a run of LED Strip is 25 meters.
L-Connector
2 prongs for 2 Wires
LD-5105		 LD511 For connecting LED Strip Light to the power source.
2 pcs /pkg
Jumper Cable
2 prongs
LD-5165
LD-5105		 LD56181: 1 ft line connector

LD5618: 6ft line connector




 For connecting LED Strip Light SMD5050 120 volt 2 Wires line Connector .
Splice Connector Tube
2 prongs		 LD503 Connector tube for 120 volt SMD5050 2 Wires
5 pcs /pkg

RGB 4-Wire Accessories:

Photo Name Product Code Function
RGB Controller with Power Connector

4 prongs

 LD64A: RGB Controller & Power Supply for 4 Wires, 120 volt SMD5050. RGB Controller, 8 Functions, 4-Wire, For connecting LED Strip Light to the power source, usually the maximum length of a run of LED Strip is 10 meters.
L-Connector

4 prongs

 LD611: Connector for SMD5050 120 volt 4 Wires

2 pcs /pkg

 For connecting LED Strip Light to the power source.
Jumper Cable

4 prongs 12″

 LD6181: line Connector for SMD5050 120 volt 4 Wires For connecting LED Strip Light to the power source.
Male Pin Connector

4 prongs

 LD635: Male Pin Connector for 120 volt SMD5050 4 Wires, Connector between 2 pieces of LED Strip Light.
10 pcs /pkg
Splice Connector Tube

4 prongs

 LD603 Connector tube for 120 volt SMD5050 4 Wires

5 pcs /pkg
RGB Controller LD64C: RGB Controller for 4 Wires 120 volt SMD5050 Strip light, Indoor use only.. RGB Controller for connecting LED Strip Light to the power source, allow for many color options. From single color to multi color/speed combinations. usually the maximum length of a run of LED Strip is 50 meters.
